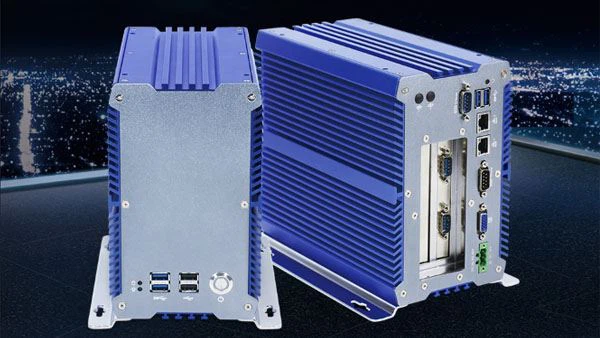

Product Details of 7th Gen Core I5 I7 Industrial PC PCI Slot

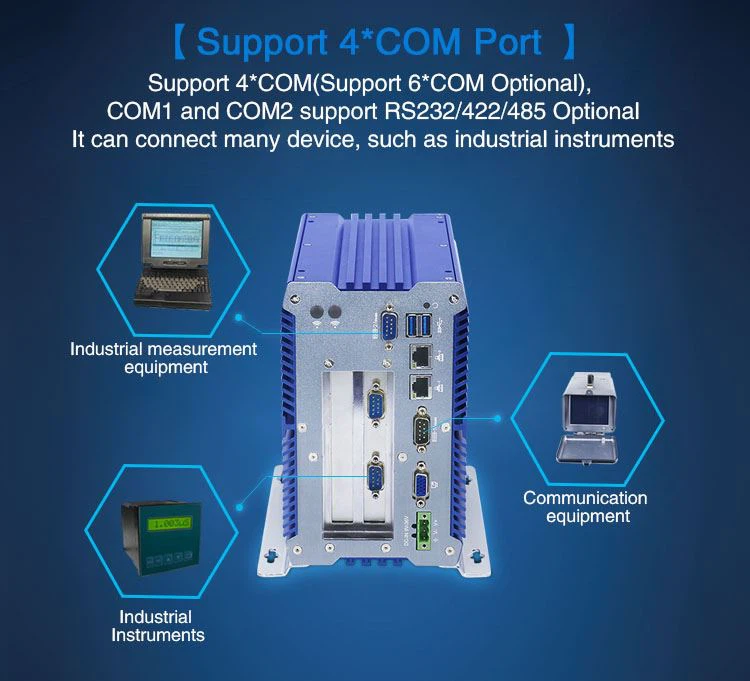

The IBOX-701Plus features one DDR4-1866/2133 SO-DIMM slots with up to 16 GB memory. For easy cabling and maintenance, the IBOX-701Plus rated embedded system features a wide choice of front-accessible I/O interfaces, including 2USB3.0,2USB2.0,2Indicator light,1Power Switch;Rear I/O:2USB3.0,2Intel 1000M LAN,1VGA,13Pin Power Phoenix Connector, 1Clean COMS button,Standard 4COM(6*COM Optional,COM1,COM2 RS232/422/485 Optional).
The compact industrial PC also provides Expansion Port,1MINI PCIE Slot(WIFI/3G/4G Optional),Embedded SIM Slot ; 1MINI PCIE Slot(Support MSATA).
There are three different combinations of expansion kits: (Choose 1 from 3)
① 1PCIE X4 + 1PCI(32bit),Built-in 1*USB2.0
② 2PCI(32bit),Built-in 1USB2.0
③ 1PCIE X4 + 1PCIE X1,Built-in 1*USB2.0
Additionally, it has 1MSATA Slot,12.5" HDD and one easy-swappable 2.5" HDD trays for storage.
The application-ready IBOX-701Plus Fanless Computer with PCI Slot is in stock. For more product information or pricing, contact our sales team.
