24/7 reliability for smart parcel lockers
Parcel lockers at petrol stations, residential towers and malls are among the toughest places for a computer: always on, often outdoors, and in the Gulf exposed to sun that makes an ordinary screen unreadable.
The challenge
Lockers sit outdoors or in unconditioned areas and face:
Direct sunlight
Standard displays wash out and become unreadable in bright daylight.
Heat inside the cabinet
A metal cabinet in Gulf summer sun can climb well above the outside air temperature.
Dust, sand and humidity
Sandstorms inland and humid, salty air on the coast both attack unprotected electronics.
Heavy public use
Hundreds of users a day press the touchscreen, some roughly.
The IWILL approach
An industrial panel PC — Android on ARM or Windows on Intel — with modifications for outdoor use:
High-brightness display
Brightness raised to around 1000 nits for sunlight readability, with optical bonding against glare and condensation between glass and LCD.
Wide-temperature components
Industrial RAM and SSD rated to +60°C. In the Gulf, the locker cabinet also needs shading and ventilation so the panel stays inside that rating.
Peripheral integration
USB and COM ports drive the door locks, barcode reader and payment terminal directly, without extra hubs.
IP65 front
A sealed front resists water jets and dust, with capacitive touch that works with wet fingers.
What the deployment is designed to deliver
Fewer service visits and a screen customers can actually read at noon.
- Readable interface in direct sun
- Stable operation through summer
- Direct control of locks and scanners
- Fewer technician visits to site
Send us
- 1Where the lockers stand: shaded, open sun, coastal or inland
- 2Screen size and orientation
- 3Lock controller, scanner and payment interfaces
- 4Android or Windows software stack
Key specifications
- ~1000 nits
- brightness option
- +60°C
- component rating
- IP65
- front protection
- RK3568 / Intel
- processor options
Recommended panel PCs
Starting points; high-brightness builds are configured to order.

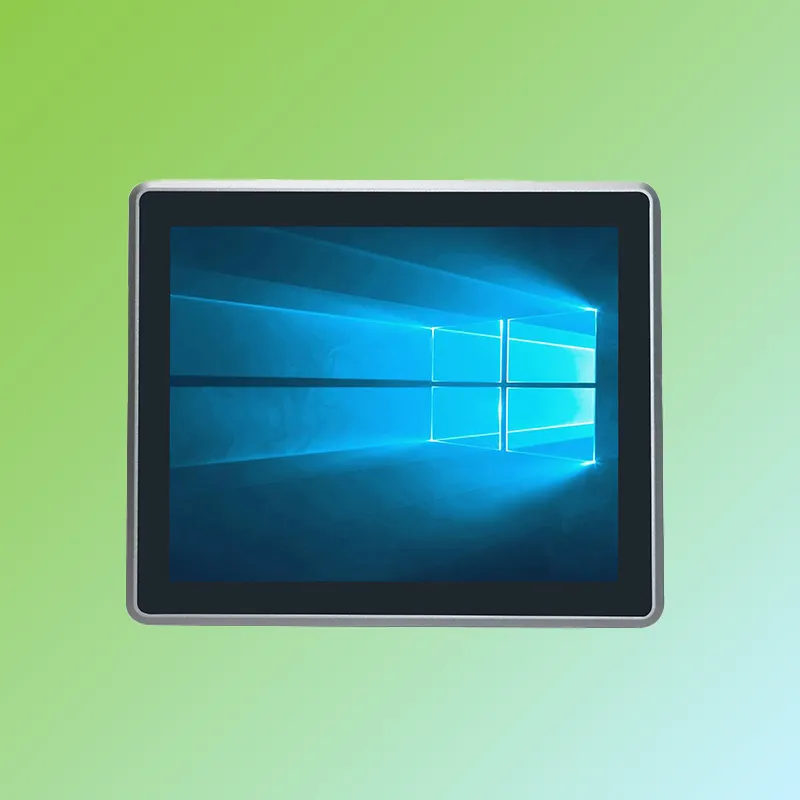

ITPC-A113
Die cast aluminum alloy moulding, fanless Industrial Panel PC; Onboard Intel Celeron J6412,4205U,i3,i5,i7 optional; Support 9V ～ 36V wide voltage...
ITPC-A156
ITPC-A156 is a 15.6 inch Capacitive fanless panel pc,the industrial panel pc ,adopts Intel Celeron J1900 processor with...
ITPC-B150
IWILL Realeased the ITPC-B150 cheap 15" Touch Screen Industrial PC,Adopt all aluminum alloy structure, fanless design,Adopt HD...
Frequently asked questions
Can a panel PC survive a locker in direct Gulf sun?
Only if the cabinet is designed for it. Summer air in the Gulf can pass 45°C and a sun-loaded metal box gets hotter still — above what any standard electronics are rated for. A canopy, reflective finish and ventilation or a small cooling unit keep the panel inside its rating; we review the design with you.
Android or Windows?
Android on ARM is lower-cost and lower-power for a dedicated locker app. Windows on Intel suits software that already runs on Windows or needs more peripherals.
Planning a similar project?
Contact us for a free consultation and a proof-of-concept panel for your lockers.
