Industrial touch panel PCs for HMI
Rugged all-in-one panel PCs with IP65 front protection. Choose Intel x86 for Windows software and heavy SCADA, or ARM for lightweight web HMIs, Android kiosks and lower power draw.
- IP65 front
- 10.1"–21.5"
- Intel or ARM
- VESA / panel mount
- Arabic & English UI
One form factor, two architectures
There is no universal panel PC. IWILL builds the same rugged all-in-one platform around two different processors so it fits the software you already run.
The x86 series (Intel Celeron and Core) is the right choice for Windows applications, full SCADA clients, ERP terminals and anything that needs more computing power. The ARM series (Rockchip) is optimised for Android and Linux — web-based HMIs, thin clients, kiosks and IoT dashboards where lower cost and lower power matter more.
Built for dirty, wet and hot environments
IP65 true-flat front
A flush front resists water splashes and dust and wipes clean, with no bezel edges for dirt to collect in.
Industrial touchscreen
Projected-capacitive touch tuned to work through thin work and medical gloves; resistive models are available where operators wear heavy gloves.
Passive cooling
The aluminium housing is the radiator. Without a fan the panel does not pull dust, sand or metal shavings into the electronics.
Flexible mounting
VESA for arms and walls, or panel mount into a machine cut-out using the supplied steel brackets.
Intel x86 panel PCs
For Windows, SCADA clients and heavier industrial applications.
ITPC-A113
Die cast aluminum alloy moulding, fanless Industrial Panel PC; Onboard Intel Celeron J6412,4205U,i3,i5,i7 optional; Support 9V ～ 36V wide voltage...
ITPC-A156
ITPC-A156 is a 15.6 inch Capacitive fanless panel pc,the industrial panel pc ,adopts Intel Celeron J1900 processor with...

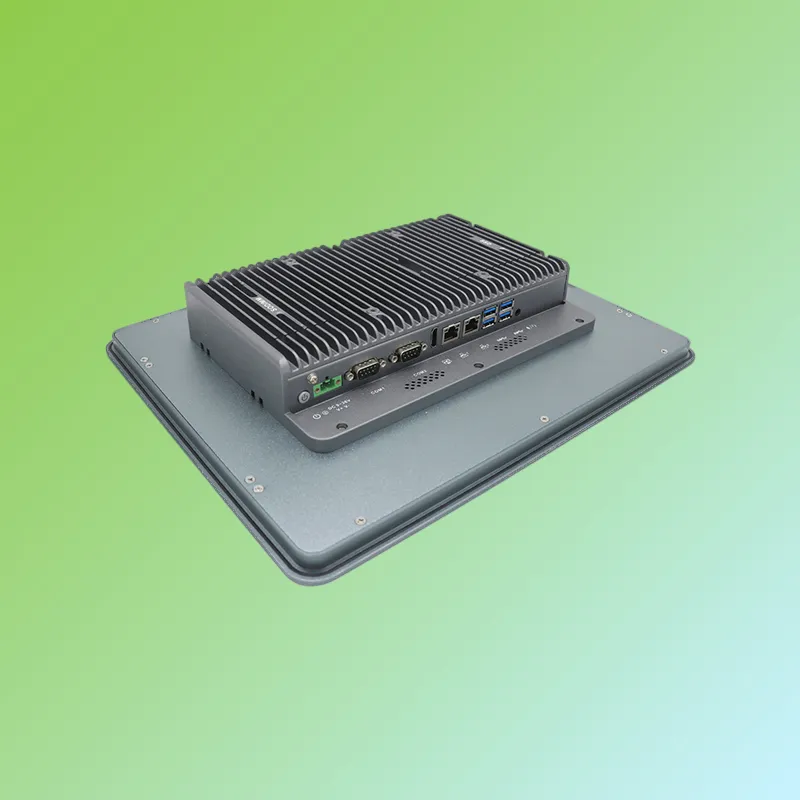

ITPC-A600
A600 is a 17 inch Touch Panel PC newly launched by IWILL, Intel celeron J6412,Core i3,i5,i7 processor,Industrial grade multi-touch resistance...
ITPC-A215C
All Aluminum, Fanless Design; Intel Celeron J1900, 4th Generation Core, 6th Generation Core Optional; Adopt HD industrial LCD screen, capacitive five...

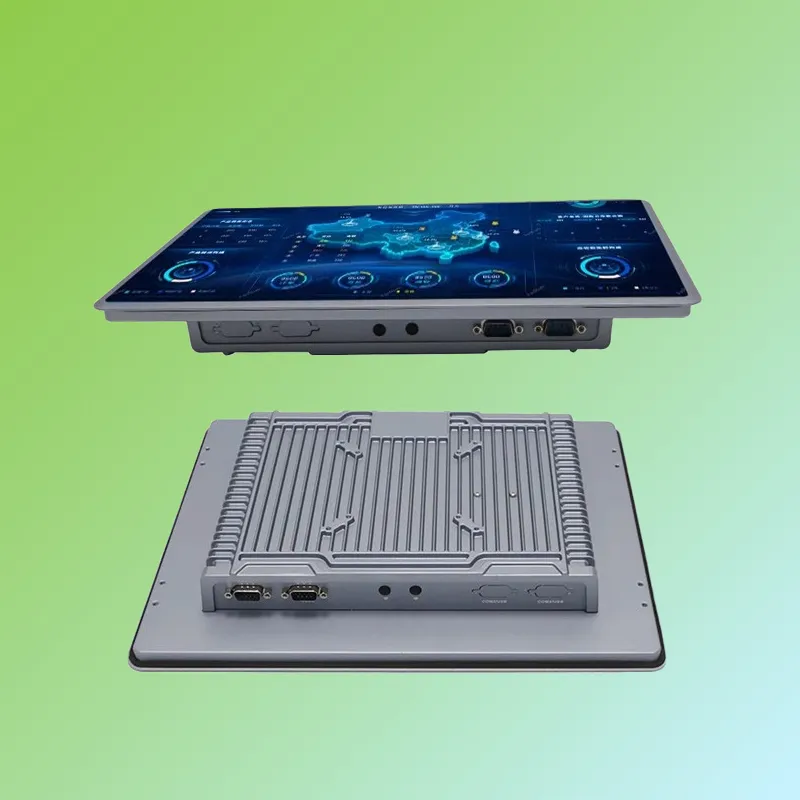

ITPC-B150
IWILL Realeased the ITPC-B150 cheap 15" Touch Screen Industrial PC,Adopt all aluminum alloy structure, fanless design,Adopt HD...

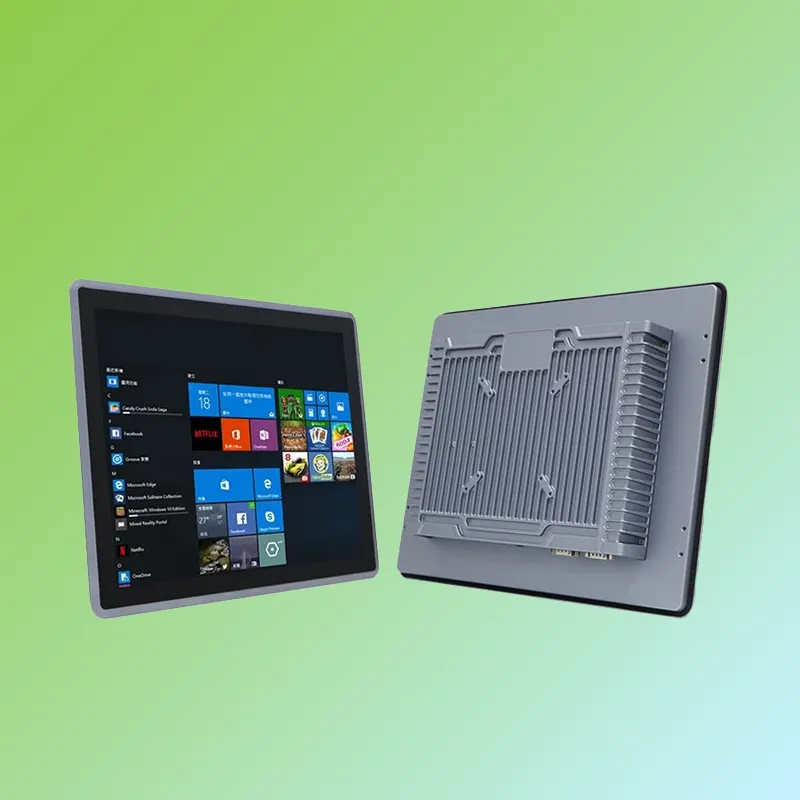

ITPC-B170
The B170 Model is a industrial grade 17 inch panel pc ,It has the Intel Celeron J1900,4th/6th Gen Core i5 CPU ,Adopt Multi-touch HD Capacitive...
Compare the two series
| x86 series (Intel) | ARM series (Rockchip) | |
|---|---|---|
| Processor | Intel Celeron J-series to Core i3/i5/i7 | Rockchip RK3568 / RK3588 |
| Operating system | Windows 10/11, Windows IoT, Linux | Android, Ubuntu, Debian |
| Screen sizes | 10.1" to 21.5" | 10.1" to 21.5" |
| Typical use | SCADA, ERP terminals, CNC and machine HMI | Web HMI, kiosks, building and IoT dashboards |
- Processor
- x86 series (Intel)Intel Celeron J-series to Core i3/i5/i7
- ARM series (Rockchip)Rockchip RK3568 / RK3588
- Operating system
- x86 series (Intel)Windows 10/11, Windows IoT, Linux
- ARM series (Rockchip)Android, Ubuntu, Debian
- Screen sizes
- x86 series (Intel)10.1" to 21.5"
- ARM series (Rockchip)10.1" to 21.5"
- Typical use
- x86 series (Intel)SCADA, ERP terminals, CNC and machine HMI
- ARM series (Rockchip)Web HMI, kiosks, building and IoT dashboards
ARM models are supplied to order. Exact ports, power input and temperature range depend on the model and are confirmed with the quotation.
Applications across industries
Production lines
Operator panels for machine control and process visualisation.
Logistics and warehouses
VESA-mounted terminals on forklifts and packing stations for barcode scanning and WMS access.
Healthcare and laboratories
Hygienic fanless panels that do not spread dust and can be wiped with disinfectant.
Self-service kiosks
Ordering, payment and government e-service terminals with bilingual Arabic and English interfaces.
Industrial endurance
- IP65
- front-panel protection
- 24/7
- continuous operation
- 21.5"
- largest screen
- 3 yrs
- standard warranty
Frequently asked questions
Can the panel PC be used with gloves?
Yes. The capacitive screens are calibrated for most thin industrial and medical gloves. For heavy work gloves, choose a resistive-touch model.
What is the difference between the Intel and ARM models?
Choose Intel if you run Windows software such as SCADA or ERP clients. Choose ARM if the application is lightweight, web-based or built for Android — it saves budget and power.
Is the rear of the panel also IP65?
The IP65 rating applies to the front panel. When the panel is mounted into a cabinet door or machine, the rear sits in the protected enclosure. For full washdown, see our food-processing solution.
Do the panels support Arabic?
Yes. Windows, Linux and Android all support Arabic input and right-to-left interfaces; the HMI software decides how the screens are laid out.
Related solutions
Food & Beverage Touch Panels
IP65 and IP69 industrial touch panel PCs for ERP, HMI and production terminals in wet, dusty and hygienic zones.
Read moreIndustrial Automation
Fanless SCADA and HMI computers for plants, process lines and remote sites in heat, dust and vibration.
Read moreInteractive Kiosks & Totems
Floor-standing 55" 4K touch totems with printer, NFC, QR scanner and camera, plus a CMS built for your network.
Read moreSelf-Service Terminals
Reliable panel PCs for kiosks, vending, ticketing and interactive customer terminals.
Industry overviewPlanning a panel PC project?
Tell us the software, the screen size and where the panel will be mounted, and we will propose the right configuration.
